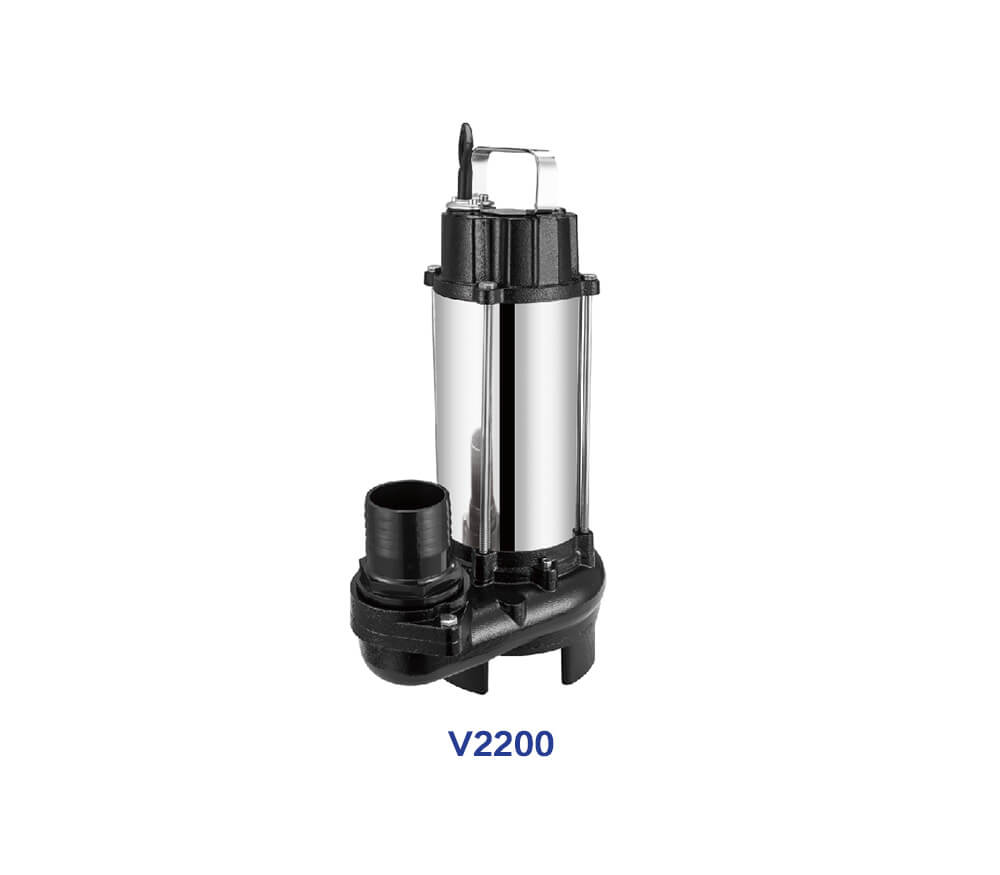

The WQD-V Series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such us short fibers, paper scraps,etc, and soft solid, such as muddy water, dirty water, domestic wasterwater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and construction sites, but not apply to the location with explosion-proof requirements.
Bulit-in thermal protector for the single phase motor
Insulation:ClassB/F
Pump body cast iron on request
Pump housing stainless steel on request
Impeller cast iron on request
External float switch for automatic pump operation
Mechanical seal sets ceramic, graphite and rubber
Oil seal sets
Liquid PH: 4～10
Maximum liquid temperature: +40℃
Maximum ambient temperature: +40℃
Maximum immersion depth: 5m
Liquid kinematics viscosity: 7x10^﹣7~23 x 10^﹣6m²/s
Maximum liquid density: 1.2x10³kg/m²
The grain diameter of suspended solids up to 25mm

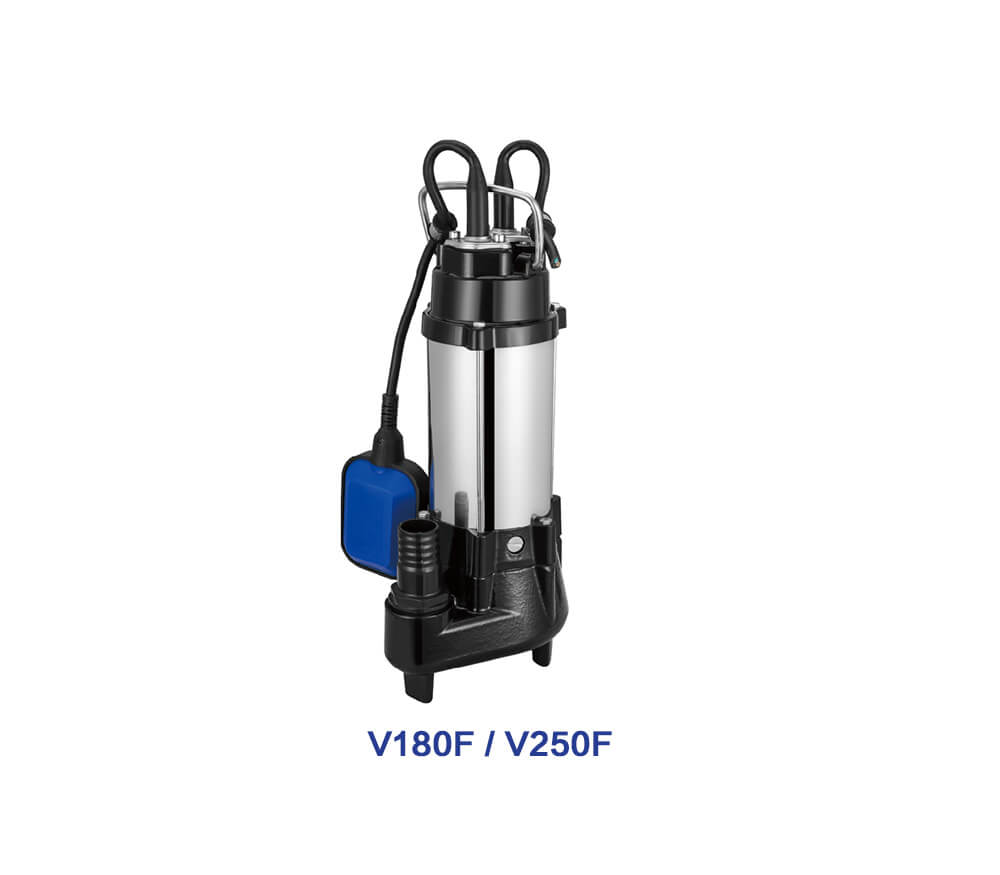

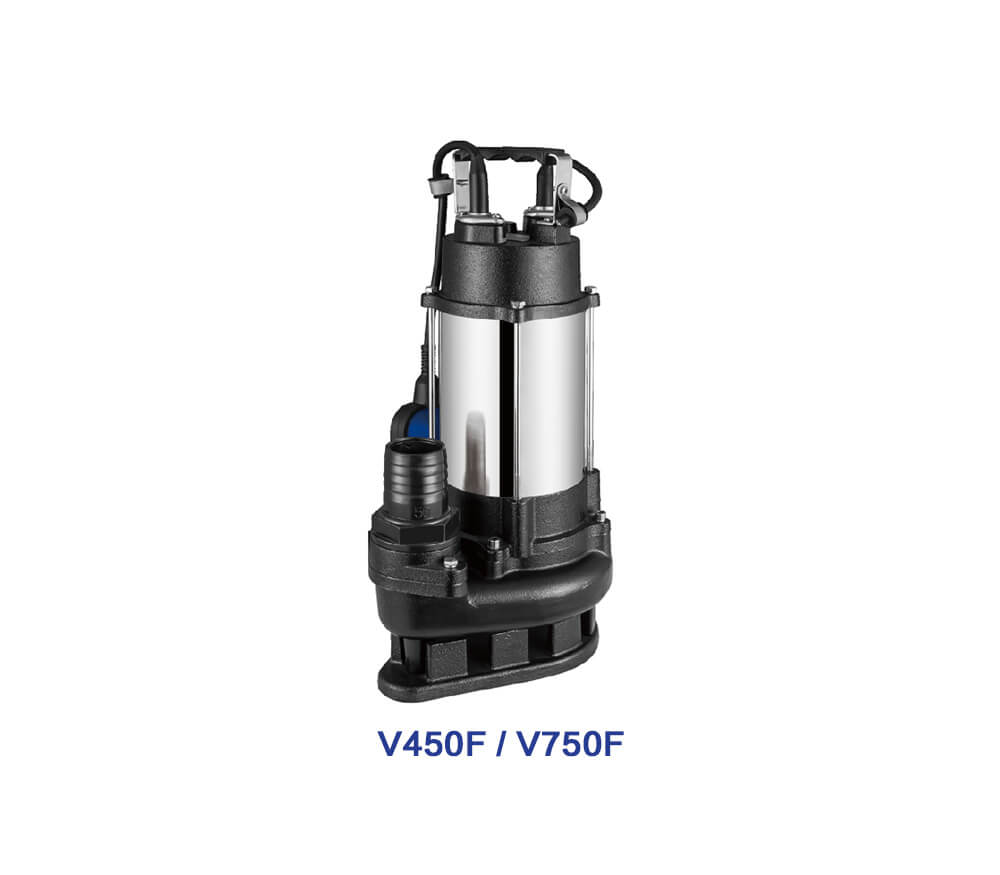

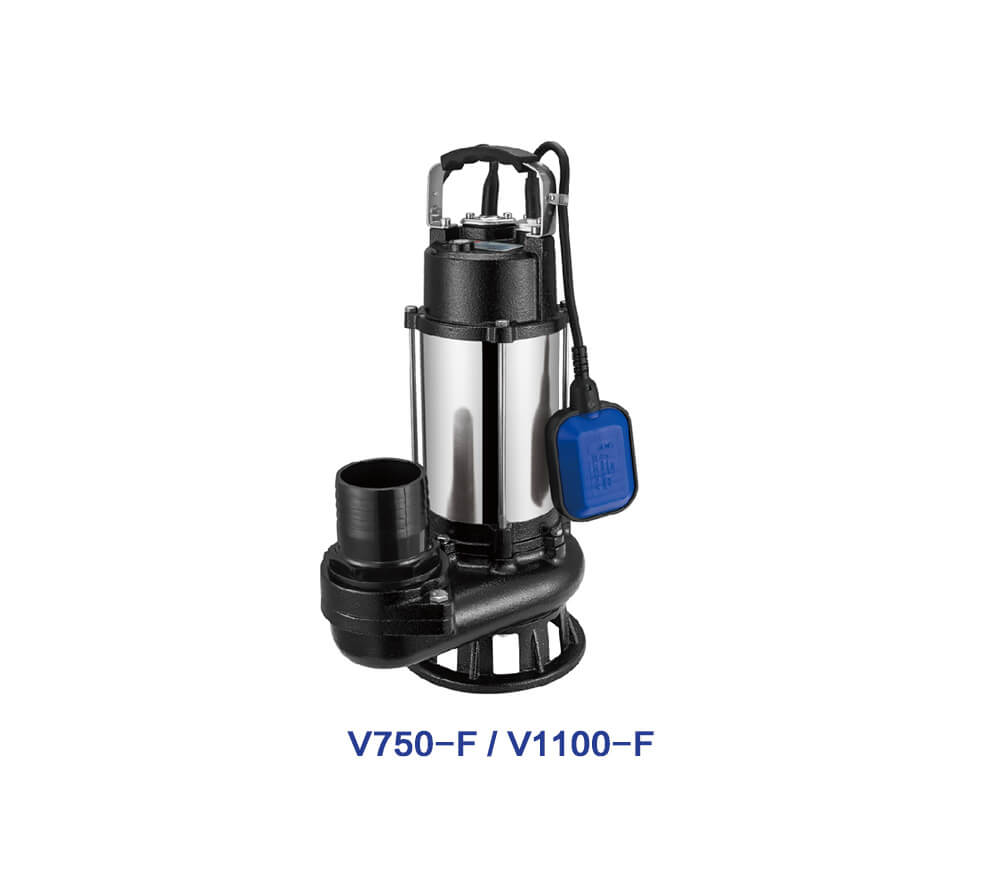

F means with float switch
