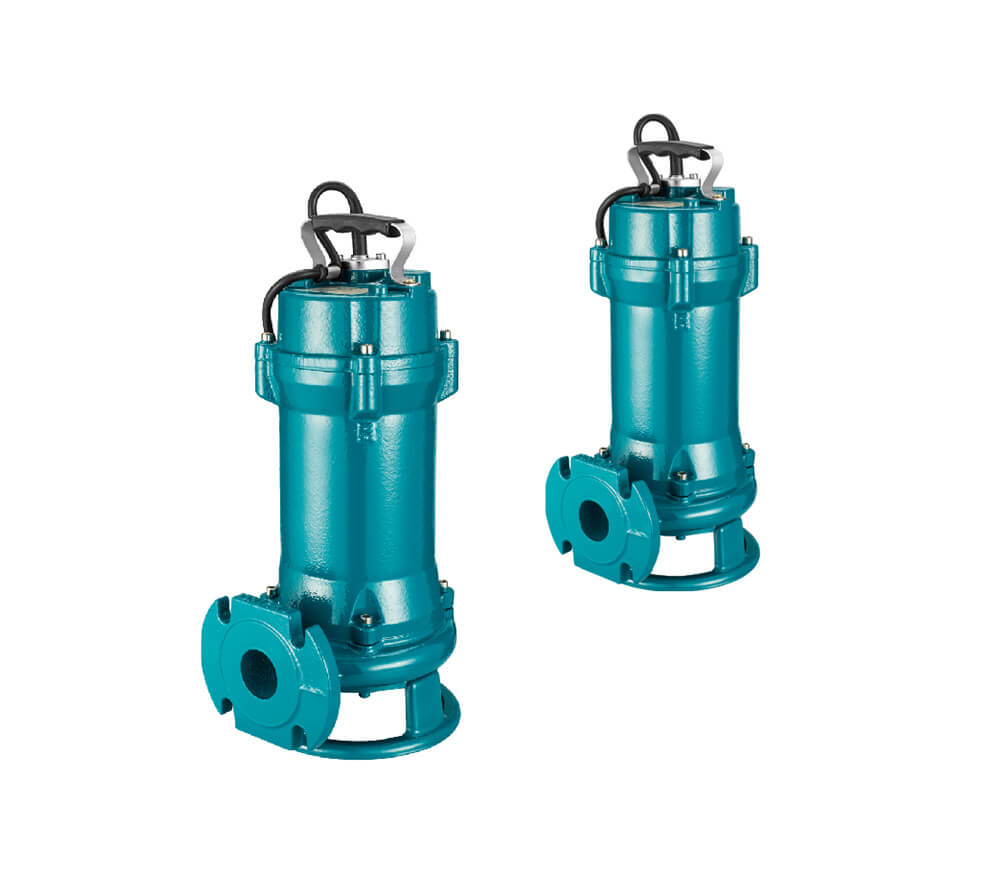

The GNWQ(D) Series grinder pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as shot fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. With a good capacity of anti-clogging and anti-winding, the grinder pumps are especially applicable for pumping household wastewater and mixed fluid with insoluble solids content such as fibers, bags, belts, straw, cloth, paper, sand, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and construction sites, but not apply to the location with explosion-proof requirements.

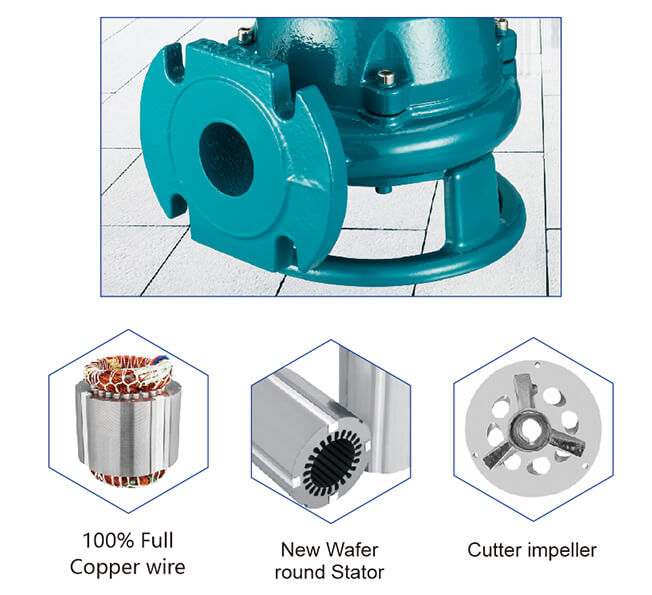

1. Wear-resistant cutting impeller, the durable cast iron material for the pump body, motor bracket and the roof.
2. The heat treated steel shaft. Carbide double sides mechanical seals.
2pole induction motor
Insulation class: B
Protection class: Ip68
Pump body: Cast iron
Motor bracket: Cast iron.
Impeller: Cast iron or alloy
Motor shaft: The heat treated steel shaft
Mechanical seal: Ceramic-Graphite, Silicon Carbide-Carbide alloy.
Copper winding
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Single-phase with capacitor and thermal overload protection.
Liquid PH: 4～10
Maximum liquid temperature: +40℃
Maximum ambient temperature: +40℃
Maximum immersion depth: 5m
Liquid kinematics viscosity: 7x10^﹣7~23 x 10^﹣6m²/s
Maximum liquid density: 1.2x10³kg/m²
The grain diameter of suspended solids up to 25mm
Special mechanical seals, shaft
Single phase can add float switch
Other voltages or frequency: 60Hz
