For water supply from wells or reservoirs.

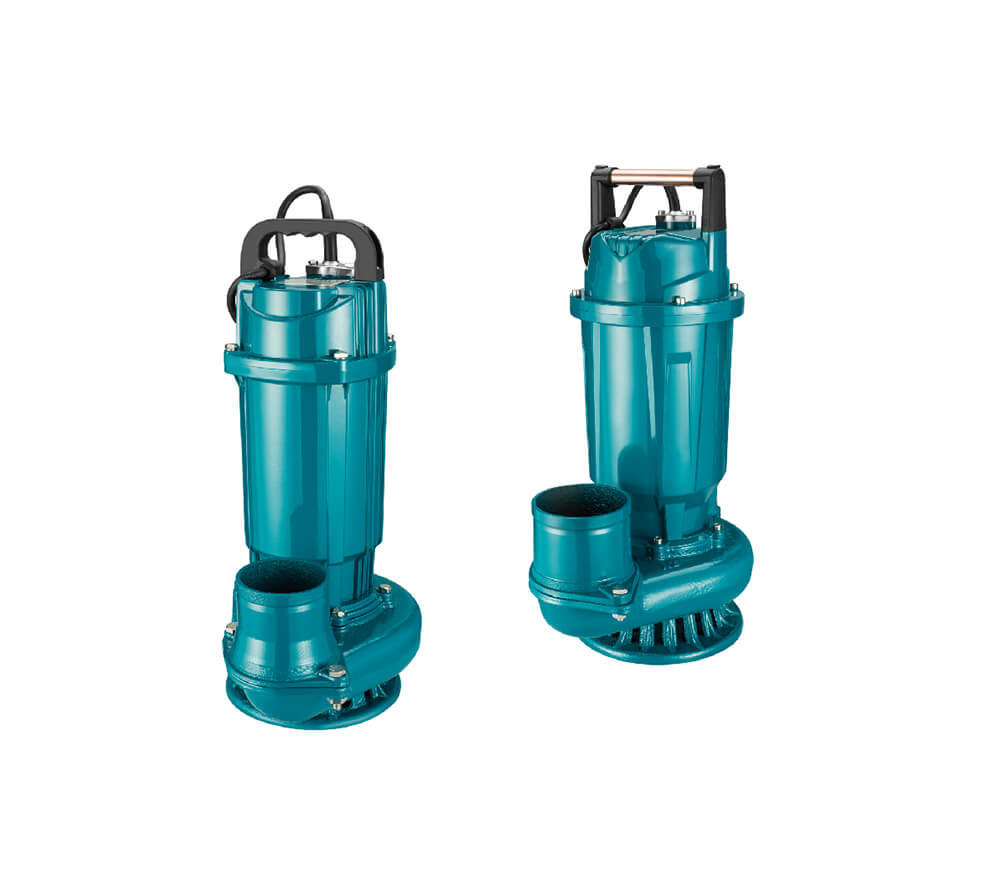

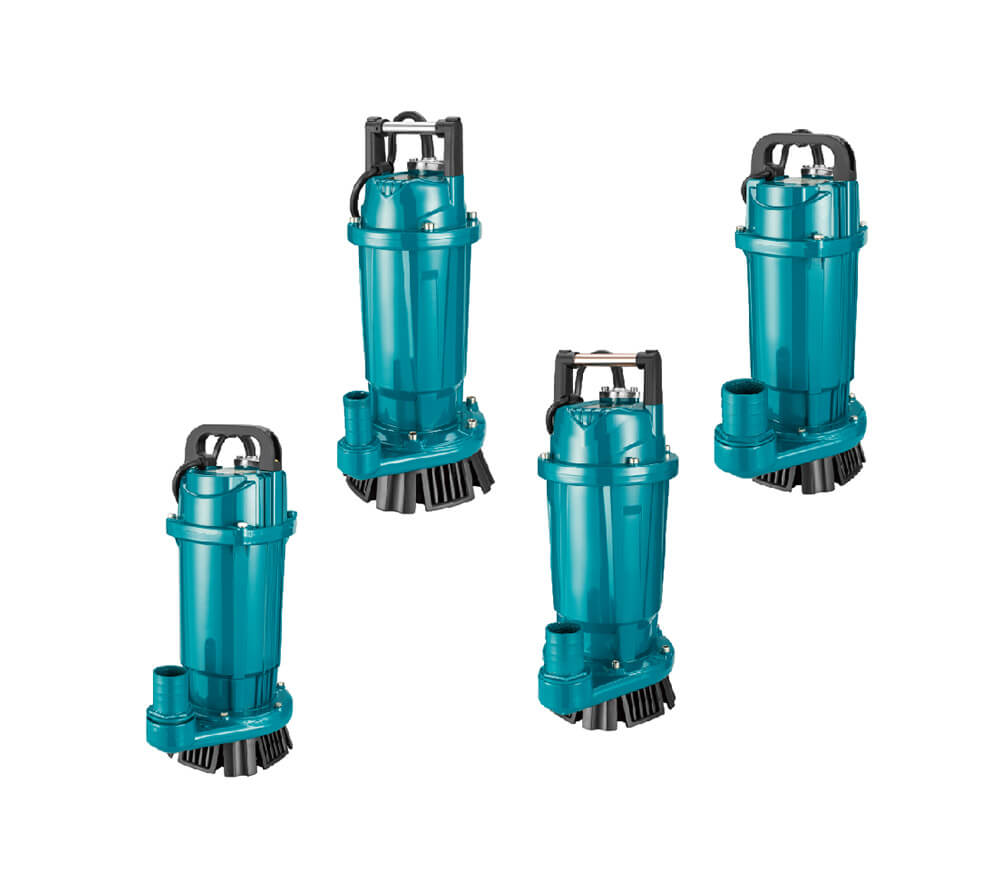

With small size and light weight, the QDX/QX Series pump is especially suitable for the rural wells water pumping, the farmland irrigation and drainage, garden watering, water spraying and households water supply, as well as other applications such as industry, aquaculture, construction sites and many other commercial applications.

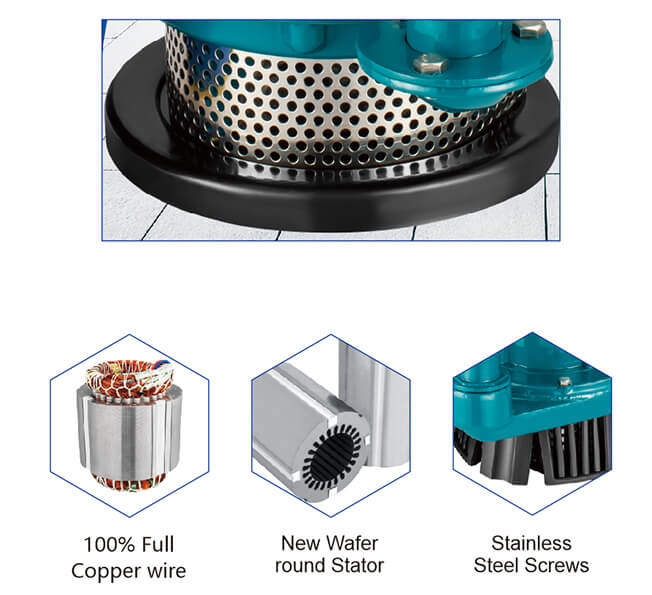

1. New-designed motor structure, longer service life.
2. Portable and durable aluminum alloy structure.
Insulation class: B
Protection class: Ip68
Pump body: Cast aluminum
Motor bracket: Cast iron.
Impeller: Aluminum alloy or plastic impeller
Motor shaft: The heat treated steel shaft
Mechanical seal: Ceramic-Graphite, Silicon Carbide-Carbide alloy.
Copper winding
2-pole induction motor.
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
Single-phase with capacitor and thermal overload protection.
Liquid PH: 6.5-8.5
Maximum liquid temperature: +40℃
Maximum ambient temperature: +40℃
Maximum immersion depth: 5m
Maximum sand content: 0.1%.
The grain diameter of suspended solids up to 0.2mm
Special mechanical seals, shaft , bottom cover, net
Single phase can add float switch
Other voltages or frequency: 60Hz
